Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: EVERSHINE
  • Model Number: ES-OU-P4-RGB
  • Usage: Outdoor
  • Tube Chip Color: Full Color, Full Color
  • Display Function: Video
  • Pixels: 4mm
  • Screen Dimension: Customized
  • Size: 256*128mm
  • Packing Method: SMD2121
  • pixel pitch: 4mm
  • Resolution: 64x32
  • Data interface: HUB75
  • Brightness: 5500 cd/m2
  • Lifespan: 10000hrs
  • Working voltage: DC5V
  • Product name: outdoor full color p4 led module

Packaging & Delivery

Packaging Details outdoor full color p4 led module,Carton packaging it.
Delivery Time Shipment 7 days after payment

good feature outdoor full color p4 led module 32x64 pixes pitch 4mm led sign board



Product paremeters



Pixel configurationSMD2525 3 in 1
LEDs configurationRed:wave length: 615~630nm;445-460mcd
Green:wave length: 515~530nm;720-735mcd
Blue:wave length: 465~475nm;102-106mcd
Pixel pitch(mm)4
Pixel density(dots/sqm)625000
Calibrated brightness(cd/sqm,nit) 5000 nits(adjustable)
Calibrated brightness proportion ratioR: G: B = 30%:60%:10%(adjustable)
Color temperature3,500° — 9,500° K(adjustable)
Contrast ratio4,000:1(adjustable)
Brightness adjustment(dimming)100 grade auto/manual-adjustment
View angle(degree)(50% brightness) Horizontal: 110° (60° off center); Vertical: 70° (+25°/-45° off center)
Readability viewing angleHorizontal: 140° (75° off center); Vertical: 90° (+35°/-55° off center)
Color capability4.4 trillion
Refresh rate(Hz)>1200 Hz(adjustable)
Frame frequency(Hz)>60 Hz
Interface portDVI interface(DVI connector)
Input signalVGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection gradeIP65 front side
LED Drive Constant-current drive
Lifetime(hours)(50% brightness) 100,000 hours
Signal transmission directionHorizontal
Operating temperature(Celsius degree)-15~+55''
Storage temperature(Celsius degree)-30~+65'
Operation humidity(RH)10-95%
Operation humidity(RH)10-99%
ServicingFront and back serving optional
Control modeSynchronous & asynchronous available
Communication optionsWire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power120/240 V AC single phase(50-60Hz)
Maximum power consumption(W/SQM)850
Average power consumption(W/SQM)320
Screen operation mode(scan/static)  1/8 Scan
Product detail

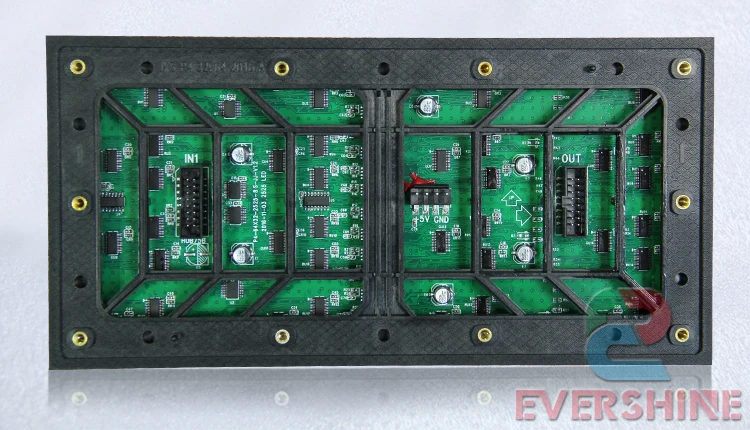

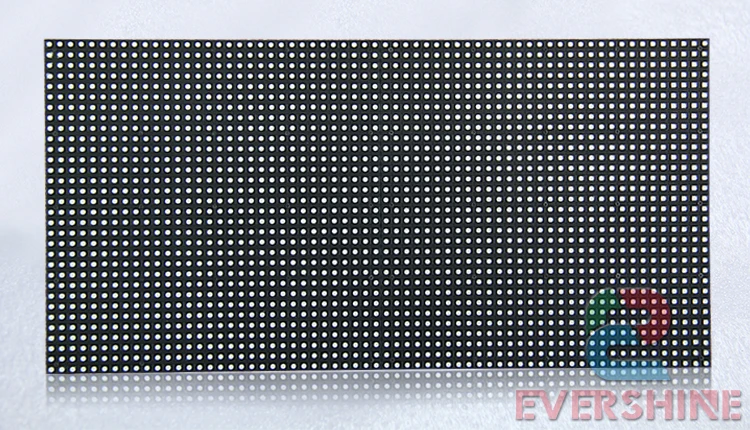

Detailed Images







     Please note the PCB picture maybe not totally same with real product because of product updating!



Main Features



1. Excellent visual effect, better viewing effect for text and graphic or video.

2. Large viewing angle, getting vivid effect within any position of the viewing range.

3. High contrast ratio and good evenness, high uniformity, without mosaic.

4. Resist of the high temperature and anti-oxidation and anti-static.

5. Any led in each pixel can be replaced, which reduce the cost of the display maintenance.

6. Long life & MTBF.
